I’ve been wanting to try plotting or printing the GDS files from my first ASIC for a while, and finally I’ve had some time to have a play. I used KLayout because it’s easy to change colours, show and hide layers, and export to a high resolution PNG.

I want to make a poster with 3 pictures inside:

1. The whole chip,
2. Zoomed into the VGA clock macro,
3. Zoomed into the standard cells.

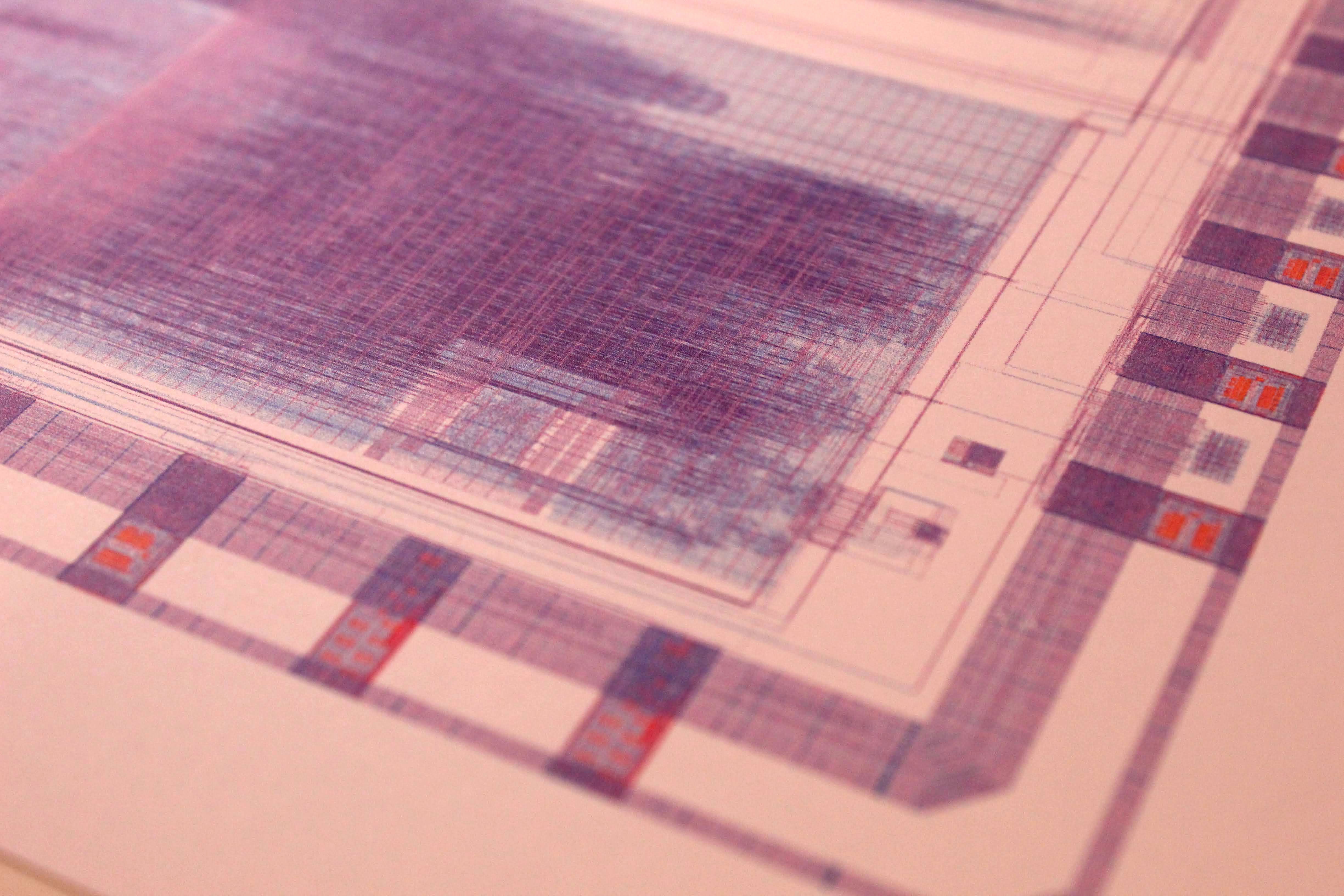

Here’s a photo of the print (I know, how meta) of 1:

Number 2:

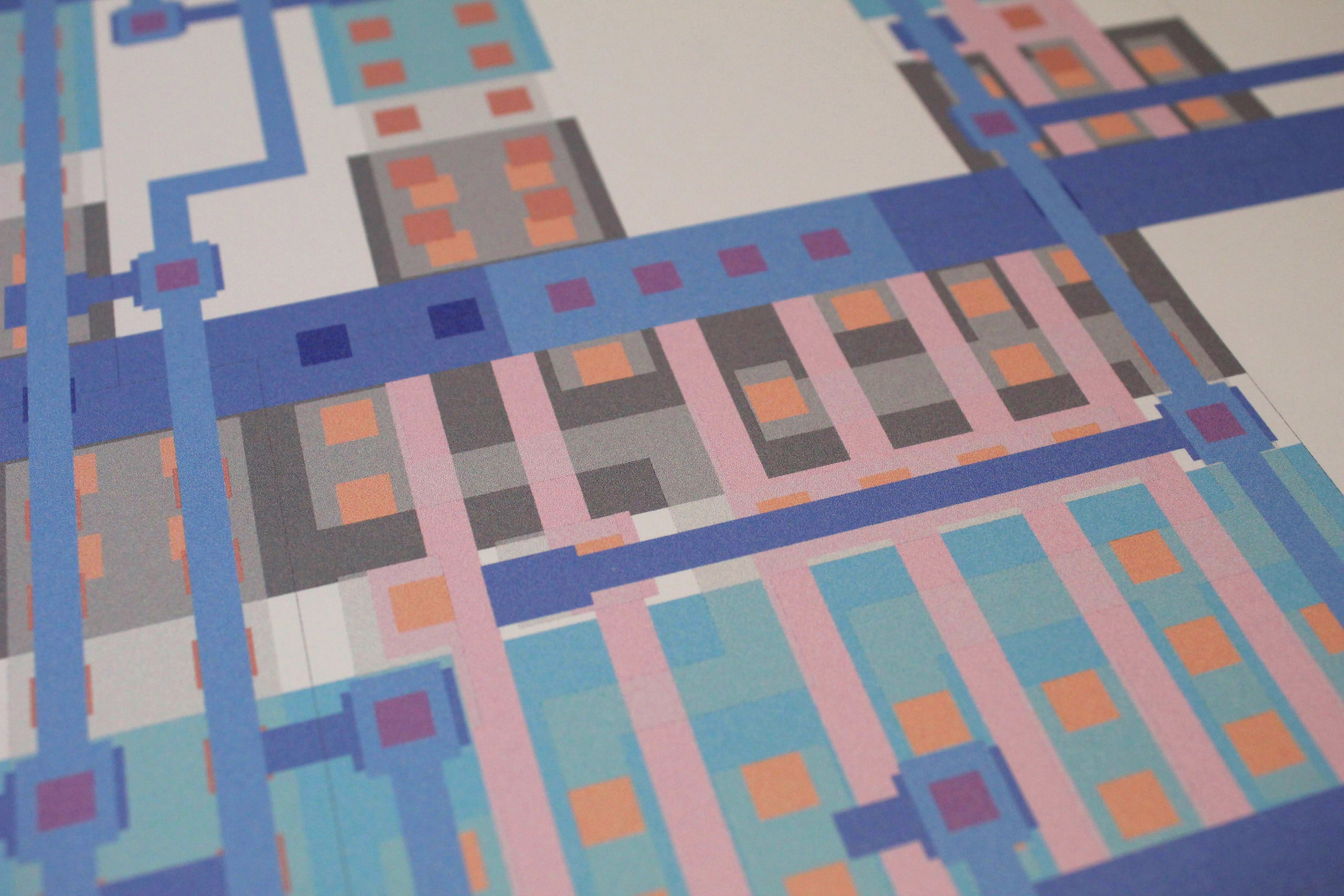

And number 3:

You can check my layout property files that define colours and layers here: https://github.com/mattvenn/klayout_properties

And I made a video showing how to use KLayout and how to export the PNG files:
